Last updated by Hiroshi Takeuchi, 29 Mar 2018.

JAXA station coordinates

All of the locations are in ITRF2008 reference frame at epoch 2005.0

Station positions and velocities of the Usuda 64m station

Coordinates of the Usuda 64m station is represented by piece-wise linear model due to co-seismic and post-seismic motion of the station.
Start(UTC)           End(UTC)             X[m]            Y[m]           Z[m]           Vx[m/year]       Vy[m/year]       Vz[m/year]
1994-01-01T00:00:00  2000-10-21T00:00:00  -3855355.39344  3427427.58360  3740971.21623  -4.68672785E-03   3.91370821E-03  -2.10638205E-03
2000-10-21T00:00:00  2004-09-11T00:00:00  -3855355.38232  3427427.56939  3740971.18532  -2.61080988E-03   2.34317008E-03  -7.65888453E-03
2004-09-11T00:00:00  2011-03-11T05:46:18  -3855355.38690  3427427.57609  3740971.17383  -3.80476455E-03   1.67181264E-03  -7.36693679E-03
2011-03-11T05:46:18  2011-09-17T00:00:00  -3855354.84394  3427428.08726  3740970.96399  -1.16032811E-01  -1.13631396E-01   3.52884121E-02
2011-09-17T00:00:00  2012-10-28T00:00:00  -3855355.30596  3427427.58727  3740971.12379  -4.64314664E-02  -3.85464153E-02   1.09612776E-02
2012-10-28T00:00:00  present              -3855355.42231  3427427.43690  3740971.17214  -3.12433064E-02  -1.93383900E-02   4.35803790E-03
Currently a fixed bias vector model between the IGS and IVS points (IGS - IVS bias vector: [92.371, 4.965, 49.127] [m]) is assumed for the position model, but there may be a relative-position change between the two points. The model will be updated regularly by the results of post-seismic geodetic VLBI campaign. One-sigma position accuracy of each component seems to be about 3 to 5cm after the earthquake.

X

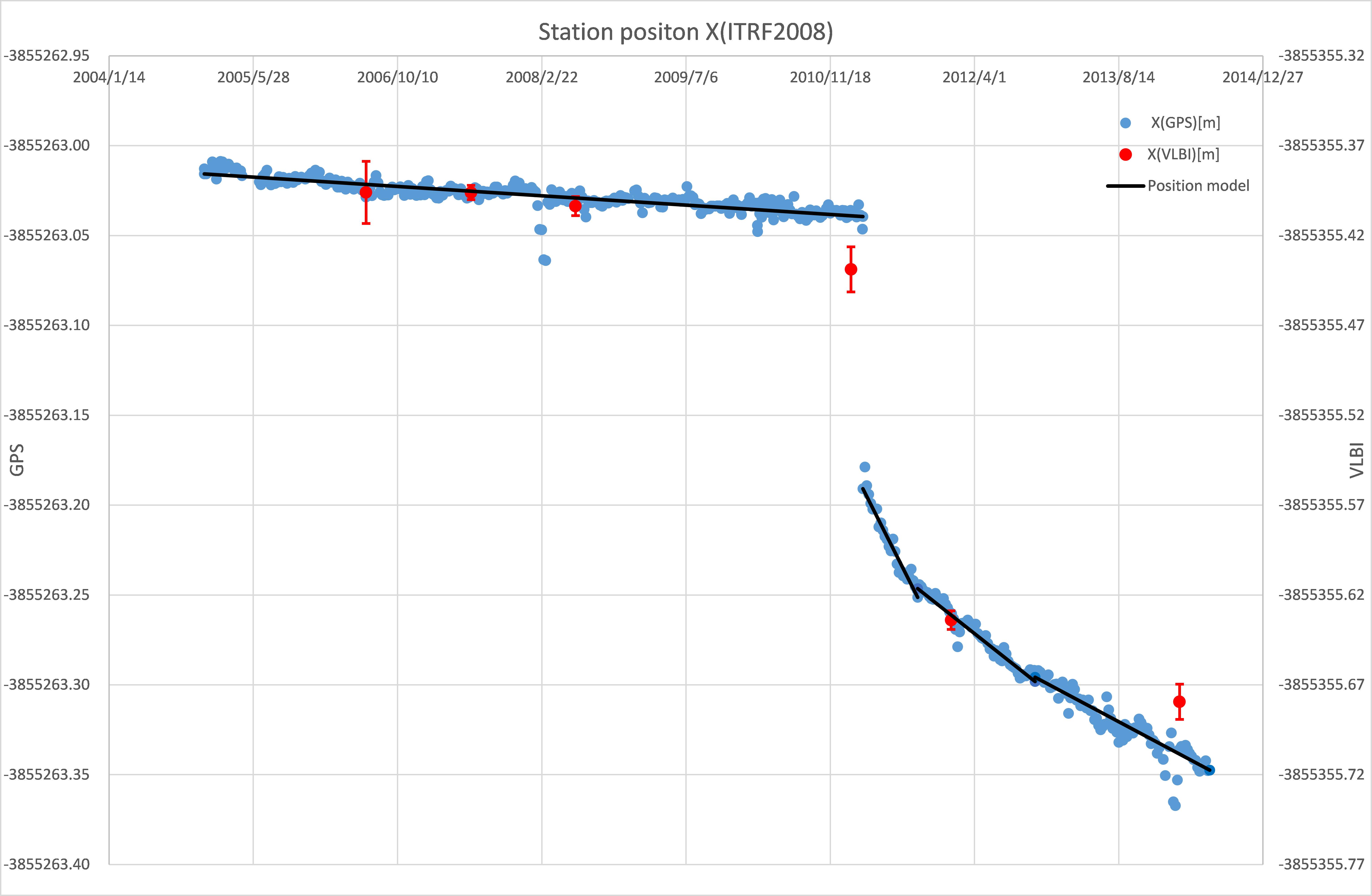

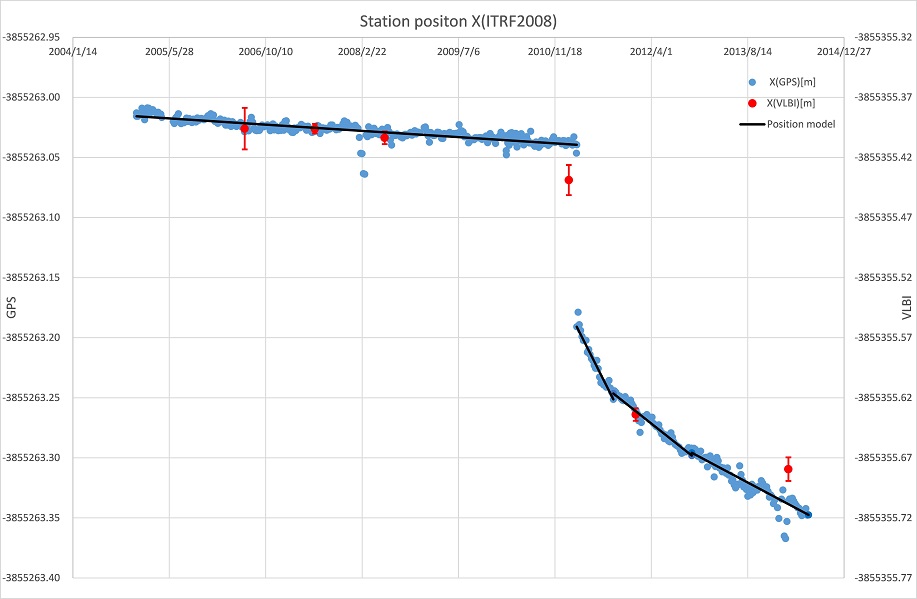

Usuda station position X
Y

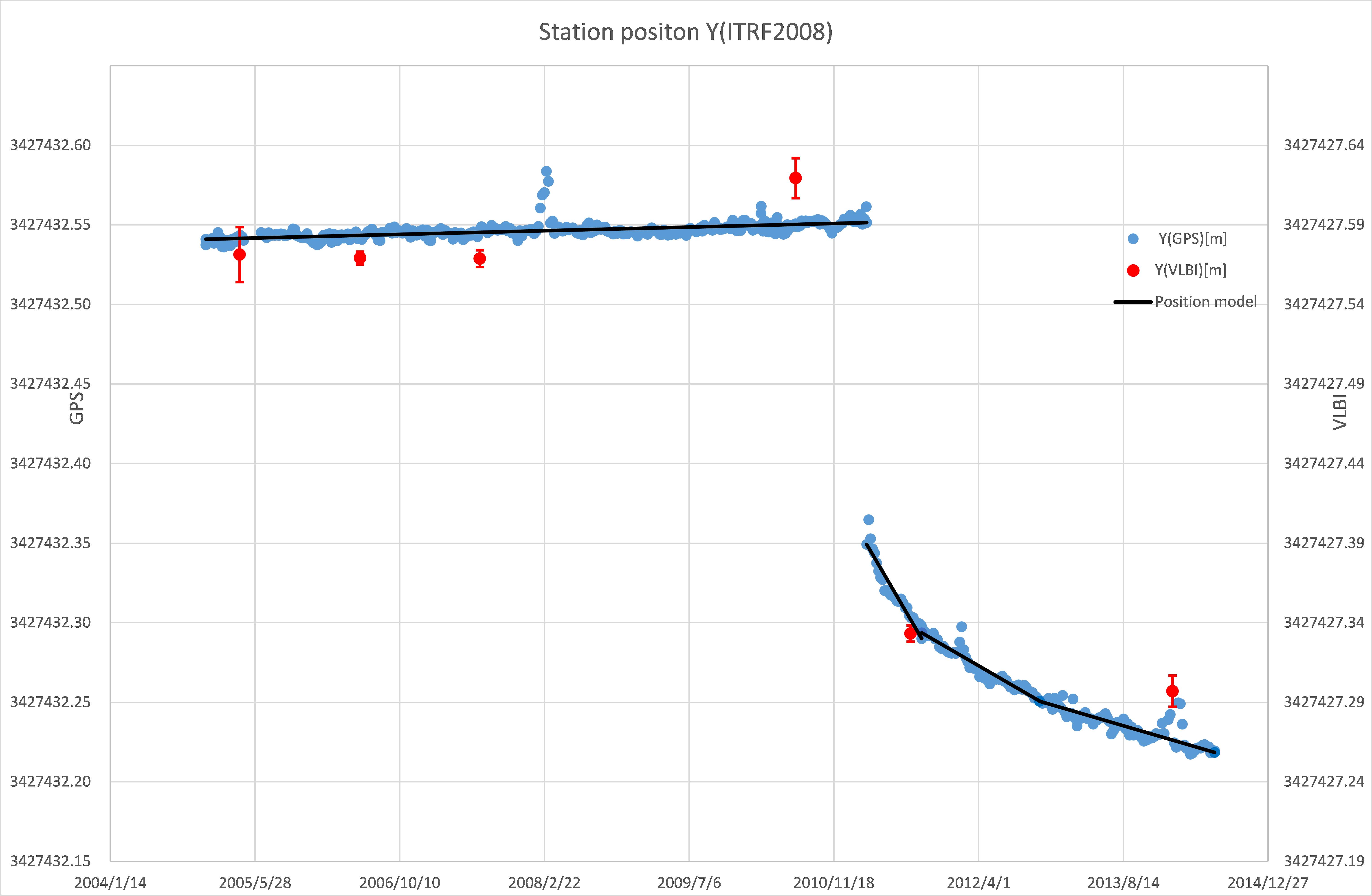

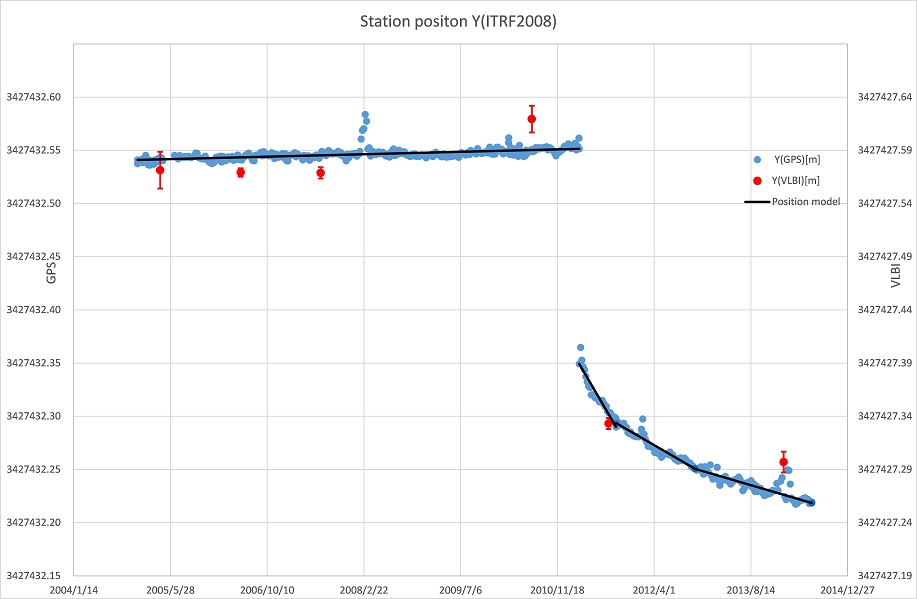

Usuda station position Y
Z

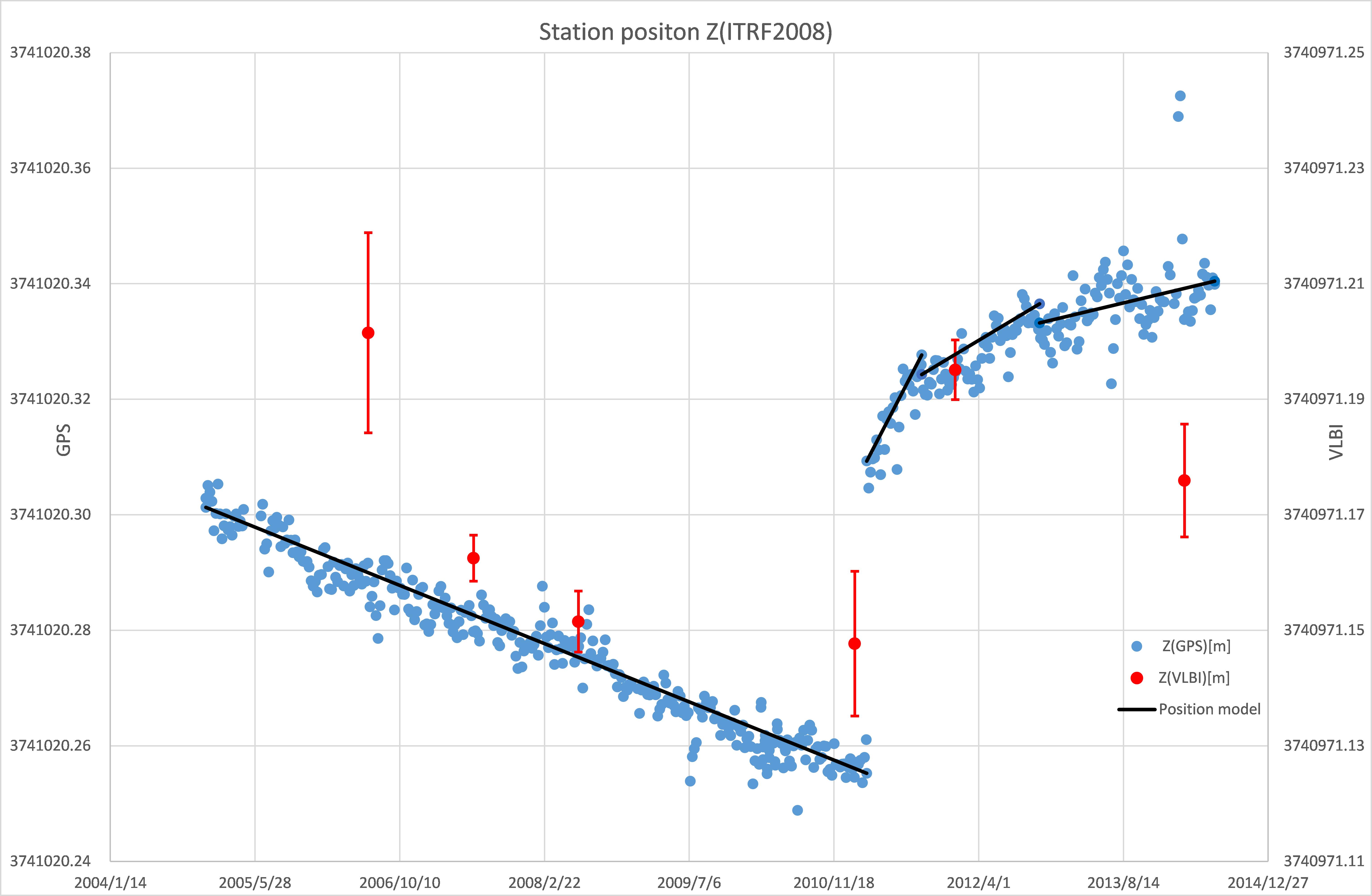

Usuda station position Z

The Usuda 64m station has a DSN station id of DSS-48. Altitude of the weather station at Usuda is about 34 meter lower than that of the reference point of the Usuda 64m station. The barometric pressure shall be calibrated by the user of the weather data from Usuda.

Station positions and velocities of the Uchinoura 34m station

The coordinate of the Uchinoura 34m station has not been affected by the earthquake.
Start(UTC)           End(UTC)             X[m]            Y[m]           Z[m]           Vx[m/year]       Vy[m/year]       Vz[m/year]
2008-01-20T00:00:00  present              -3586229.21967  4114103.75908  3290224.75032  -3.15800000E-02  -7.36000000E-03  -1.14700000E-02
The Uchinoura 34m station has a DSN station id of DSS-38. One-sigma position accuracy of each component is about 3cm. Altitude of the weather station at Uchinoura is 23.95 meter lower than that of the reference point of the Uchinoura 34m station. The barometric pressure shall be calibrated by the user of the weather data from Uchinoura.

Station position of the Uchinoura 20m station

Start(UTC)           End(UTC)             X[m]            Y[m]           Z[m]           Vx[m/year]       Vy[m/year]       Vz[m/year]
2008-01-20T00:00:00  present              -3586293.487    4113888.720    3290452.310   -3.15800000E-02  -7.36000000E-03  -1.14700000E-02
The Uchinoura 20m station has a DSN station id of DSS-37. Position accuracy of the Uchinoura 20m station is unknown.
